MK9 Commercial Cigarette Making Machine | Molins Mark9 Mid-Speed Cigarette Production Unit

MK9 Commercial Cigarette Making Machine – Mid-Speed Automatic Cigarette Manufacturing Equipment For Mass Commercial Tobacco Production

Introduction to MK9 Commercial Cigarette Making Machine

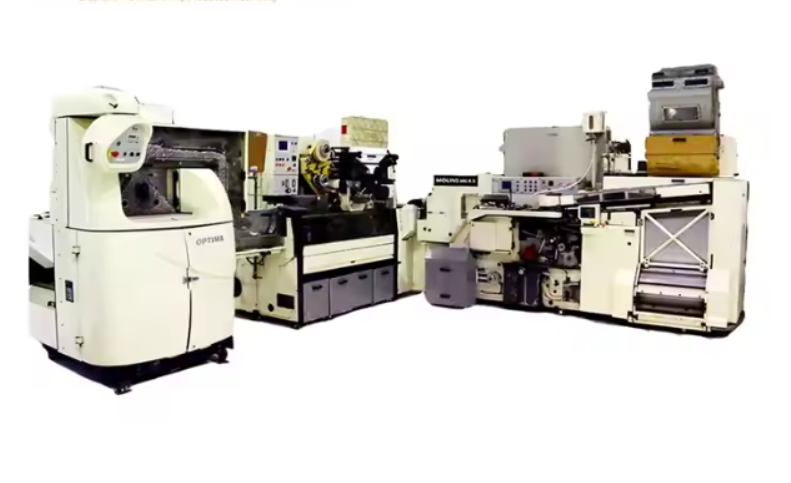

The MK9 commercial cigarette making machine, also known as Molins Mark9 combination unit, is the mainstream mid-speed commercial cigarette production equipment favored by medium-sized tobacco factories, OEM private-label brands and export-oriented cigarette manufacturers worldwide. It integrates three core functional modules: MK9 tobacco rod forming host, MAX-S filter tipping assembler and automatic cigarette tray filler, completing vacuum tobacco rolling, filter rod assembly and finished cigarette tray output in one integrated unitMolins.

Different from low-output mini MK8 and ultra-high-speed PROTOS70, this commercial MK9 strikes a perfect balance between production efficiency and procurement cost, making it the optimal choice for standardized mass commercial cigarette production. It seamlessly links upstream full set tobacco primary machinery (tobacco steaming machine, tobacco separate machine, vibrating conveyor, tobacco storage silo, casing & flavor preparation machine) and downstream HLP2 cigarette packing machine, YB59A cellophane film wrapping machine and YB69A carton packing machine. With reserved docking interface for KDF2 filter rod machine and capsule filter inserting equipment, it supports mass production of regular king-size, slim, super slim and mint burst bead capsule filter cigarettes to cover diversified commercial market demands.

All tobacco and paper contact components adopt food-grade 304 stainless steel and wear-resistant alloy, supporting stable 24-hour non-stop continuous industrial operation, widely exported to Southeast Asia, Middle East, Africa and Latin America tobacco manufacturers.

Standard Core Technical Parameters of MK9 Commercial Cigarette Making Machine

• Rated Stable Production Speed: Up to 5000 king-size cigarettes per minute; 3500 cpm for super slim cigarettes
• Applicable Cigarette Circumference: 17mm–28.3mm; total length 65–110mm
• Compatible Filter Rod: 15–30mm acetate filter, single/double aroma burst capsule filter rods
• Control System: Siemens PLC + 12-inch touch screen HMI, built-in microwave online weight detection
• Weight Control Precision: Single cigarette weight deviation controlled within ±1%, automatic rejection of defective rods
• Total Installed Power: 44.5–50KW
• Overall Machine Weight: Approx 7800KG
• Working Voltage: 380V three-phase, customizable to local factory power standards

 Key Competitive Advantages of MK9 Commercial Cigarette Making Machine For Commercial Tobacco Plants

1. Balanced High Output & Cost-Effective Commercial Investment Max 5000 cpm stable mass production capacity greatly improves daily commercial order output, while the overall procurement and maintenance cost is far lower than PROTOS70 high-speed units. It perfectly fits medium-scale commercial factories pursuing large batch production without ultra-high capital budget input阿里巴巴中....
2. Ultra-Stable Rod Forming & Uniform Commercial Cigarette Quality Optimized vacuum tobacco feeding and rolling structure ensures consistent tobacco density of each cigarette rod. Real-time microwave weight detection automatically adjusts feeding flow to eliminate uneven weight cigarettes, unified smoke taste and neat appearance of finished products, fully meeting retail and export commercial quality inspection standards.
3. Full Compatibility With Complete Tobacco Production Workflow Standard tobacco tray feeding inlet perfectly docks vibrating conveyor and tobacco storage silo for continuous uniform cut tobacco supply; finished cigarette outlet directly connects HLP2 packet packing equipment. Synchronized speed interlock with KDF2 filter rod machine and capsule filter inserting unit realizes unmanned automatic production of capsule filter commercial cigarettes without extra mechanical modification.
4. Flexible Multi-Spec Commercial Product Fast Switching Quick mold replacement and one-click formula storage on touch screen support rapid switching between king size, slim, super slim and kretek cigarette formats. Multiple production parameter formulas can be stored, brand switching finished within 5 minutes without complex mechanical debugging, suitable for factories producing multiple commercial cigarette flavor lines.
5. Modular Split Structure & Low Long-Term Maintenance Cost Three independent split modules design for easy disassembly, cleaning and vulnerable spare parts replacement. Centralized automatic lubrication system reduces component abrasion and downtime loss. Our tobaccomachinery.top factory stocks full range matching MK9 spare parts for global fast delivery and remote technical guidance, cutting long-term factory operation maintenance expenditure.
6. Gentle Tobacco Conveying Design To Reduce Raw Material Waste Low-friction tobacco forming and conveying channel avoids violent extrusion and pulverization of fragile cut tobacco, effectively lowering tobacco shred waste rate during long-hour continuous commercial mass production, saving expensive tobacco raw material cost for manufacturers.

 Complete Commercial Production Workflow Matched With MK9 Commercial Cigarette Making Machine

1. Raw tobacco processed by tobacco steaming machine → tobacco separate machine → casing & flavor preparation machine → tobacco drying machine
2. Moisture-balanced uniform cut tobacco buffered inside tobacco storage silo, transported via vibrating conveyor to MK9 feeding hopper
3. KDF2 filter rod machine produces standard acetate filter tips; optional capsule filter cigarette manufacturing machine embeds aroma burst beads into filter rods
4. MK9 commercial cigarette making machine completes automatic tobacco rod rolling and filter tipping assembly
5. Finished cigarettes are conveyed to HLP2 cigarette packing machine for inner aluminum foil hard packet forming
6. Hard cigarette packets flow into YB59A packing film machine for transparent BOPP cellophane wrapping with tear tape
7. Film-wrapped packets enter YB69A carton packing machine for automatic strip carton loading and sealing, ready for wholesale and export shipment

As one-stop full tobacco machinery supplier operating tobaccomachinery.top, we supply complete matched equipment for MK9 commercial cigarette making machine: full set tobacco primary processing machinery, KDF2 filter rod makers, capsule filter inserting units, complete ZB43A packaging line (HLP2+YB59A+YB69A) and full stock of MK9 vulnerable spare parts compatible with original Molins mechanical standards.

 Request Custom Commercial Production Line Quotation

Inform our engineering team your target daily commercial cigarette output, required cigarette specifications (regular/slim/capsule filter), matched upstream tobacco primary machine models and workshop layout space. Our technical team will design exclusive integrated commercial production line layout plan and offer competitive factory direct price for new commercial factory construction or old production line upgrading renovation.

Q: What scale of tobacco factories is MK9 commercial cigarette making machine suitable for?

A: It is specially designed for medium-sized commercial tobacco factories, OEM private-label cigarette production workshops and export cigarette manufacturers with large batch production demands, balancing production speed and investment cost perfectly.

Q: Can MK9 commercial cigarette making machine match tobacco primary machine and vibrating conveyor?

A: Yes, reserved standard docking interfaces realize seamless synchronous linkage with all tobacco primary processing equipment including vibrating conveyors, tobacco storage silos and drying machines, forming fully automatic unmanned closed commercial production loop.

Q: What is the difference between mini MK8, MK9 commercial maker and PROTOS70?

A: Mini MK8: 800–2800 cpm low-speed low-cost unit for startup small workshops; MK9 commercial cigarette making machine: max 5000 cpm mid-speed mass production for medium commercial factories; PROTOS70: 7000 cpm ultra-high-speed unit for large-scale industrial tobacco plants.

Q: Can MK9 commercial maker produce burst bead capsule filter cigarettes?

A: Absolutely. It can synchronously cooperate with our capsule filter cigarette manufacturing machine to complete automatic capsule embedding and tipping assembly, supporting mass production of menthol fruit flavor capsule filter commercial cigarettes.

Q: Does your factory supply full range spare parts for MK9 commercial cigarette making machine?

A: We stock all core vulnerable spare parts for MK9 rolling host and MAX-S tipping unit, supporting fast global international shipping and professional remote video technical guidance for installation, commissioning and routine maintenance.
